Day	Class work/ Concepts		Activities	Extensions/Alternatives
1-2	Course Introduction-What is Lego Robotics? Solidworks- From Dream to Design IRobot Video Classroom Rules- How you are dismissed Expectations Real-world Connections- Big Dog, ATM,etc.		Introduction; partners; learning/sorting the various types of Lego parts "Messing About" with a limited palette of parts- In 15 minutes, build something of Lego pieces that expresses something about you- interests, origin,etc.	Video: The Growth Mindset Video: SuperBowl Ad- Amy Purdy- How Great I Am Introduction to Video Journaling- begin collecting images and video clips, saving to folder

3-5	Create frames, surfaces, and pivots using Technic studless building. What are the differences between the different pins? How can you extend an axle? How can you attach an axle to a beam? How can you attach a beam at a right angle?		(1) Build a box with a hinged lid that will contain two balls or similar objects. Challenge Level: Include a Latch Playing with parts, students begin learning to build a stable structure that performs a task. Emphasis on studless Technics building techniques. Document progress in video	Journaling with Ipads and I-Movie Alternatives: (1) http://www.legoengineering.com/a-week-in-the-life-1-play-well/ "...Students are given the grey and black pins and told to write down five differences based just on observation. Then they are given beams to put the pins into and asked to use manipulation to come up with some more differences. This leads to a discussion of friction and the possible uses of these pins and ends with a call to use this method of observation and manipulation throughout the class...." (2) Build a fishing pole at least 24" long of lego pieces with a string at the end that can hook wooden 'fish' Challenge Level: Include a gear and crank reel to reeel up the line.

8-9	Introduction to the EV3: Intro to the brick Make a sound Move a motor Move the robit See also Carnegie-Mellon Intro to EV3		Download firmware; name brick; naming and saving programs; Simple EV3 Program: The Move Block	Presentation on EV-3

	Creating Animated GIF's Safety Fan

12-13	Silly Walks: You are to create a robot that “walks.” It doesn’t have to literally walk (e.g. two legs, step-by-step), it can’t just “roll on wheels like a car.” Since the project is called “Silly Walks,” also looking for some silly movement! Monty Python: Ministry of Silly Walks Detailed Description Examples(Tufts): https://www.youtube.com/playlist?list=PL8FDFC770343D3280 https://youtu.be/YmGOgkFKvr8		Write first NxT-G program- sequence beam, move blocks, display block, sounds, sensors- EV3: Program Motors B&C to run for 5 seconds Assignment Group Project: The Wave https://youtu.be/Zk278V75wY4 Ian Chow-Miller: Doing the Wave- Group Behaviours http://www.legoengineering.com/a-week-in-the-life-2-starting-to-wave/	Challenge level: http://youtu.be/fvghHG3mAwc See also Theo Jansen Strandbeest ( http://youtu.be/rebf6-pQhF0 ).

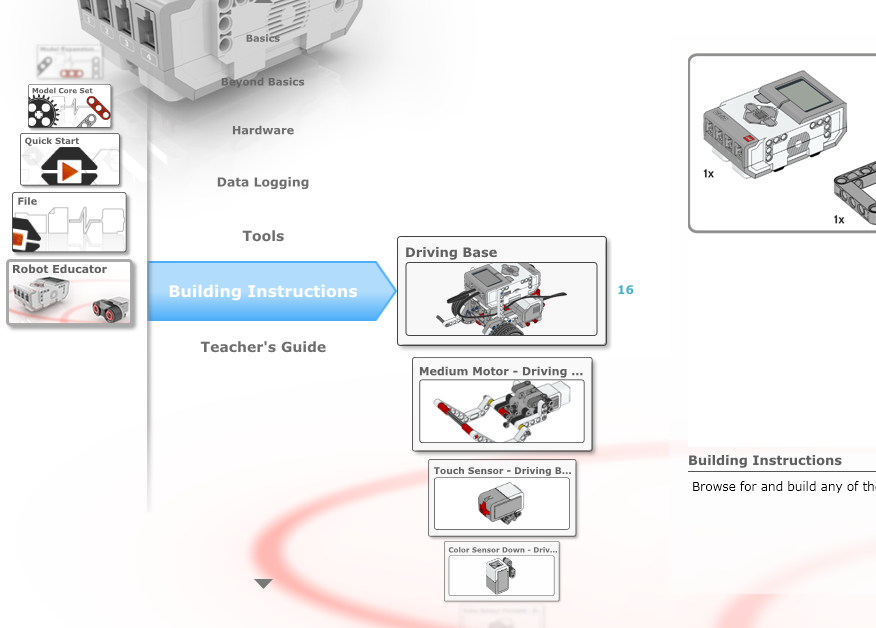

10-11	Build a manuverable vehicle		Build a vehicle per directions: Damien Kee Quick Build EV3: Build per "Building Instructions" in Robot Educator or EV3-5 Minute Bot EV3-RileyBot EV-3 Optimal Prime	Extension: Design your own original 2-motor robot

	Teach Robot to go a set distance, using time or rotations EV3 Presentation: Moving Straight		PARKING SPACE CHALLENGE ( by Barbara Bratzel, in STEM By Design) -Mark 10 -50 cm parking spaces on a strip of white paper - let students figure out how to get car to go 3 spaces -Randomly tell student what space their car needs to "park" in -Car has to stop in the correct space	-Redo using light sensor See also Stop for Pedestrians Advanced: Sensabot Challenge (C-M)

14-15	Lego Navigation Introduction to Motors (PDF) Introduction to Sensors In the News: DNA Robotics See also here. EV3 Presentation: Turning		Configuring the Move block- direction, steering, power, duration, braking/coasting Use Rotation Sensor EV3: Use Gyro Sensor Maze Challenge: Follow using dead reckoning: Watch Video simple (maze) course	Additional Challenges: Follow course using color sensor to navigate using "signs" NASA Interactive Navigation Game Blockly Programming Game EV3: Draw a Square Navigation challenge using Gyro Sensor

	Art-Bots		CloverLeaf Spirograph Challenge	http://nathanfriend.io/inspirograph/

	Light Sensor EV3 Presentation: Color Sensor		Challenge: Stop at Red line	Advanced: Stop at 3rd line Go different speeds on different colors

16-19	Sumo Bot		Students use Sumo-Bot competition to learn multi-step program, use of sensors, parallel sequences, conditionals ( switch ), loops Assignment Handout Ball Sweeper Challenge See Gripper- Damien Kee	(1) Outside the Box- Robot must find its way out of a box (2) Tabletop Treasure- Robot must stay on the tabletop, find the treasure (3) EV3: Candy/Snow Push: Robot must recognize colored candy, push it outside the ring to the winner's area Maja Mataric Challenges

6-7	Introduction to Gears http://k12videos.mit.edu/content/how-to-win-a-bike-race-using-gears Video: Gears Building Gears Lego Gears Tutorial		Gears give a mechanical advantage of speed or torque ( turning- force). GearSketch ( click on ? mark for demo)- Build virtual gear trains. Explore compound gearing. Gear Challenge: Snail Car Build the SLOWEST car you can. Car must move constantly at FULL POWER.	Extra Credit: Add a fan on top spinning as FAST as you can. Challenge: Build the FASTEST dragster you can, using gears. Discover tradeoffs of speed vs torque.

20	Feedback Loops Presentation: EV3 Line Follower		Feedback loops enable continual adjustment of performance based on results Line Follower Weapon Moves if opponent sensed Use color sensor to choose navigation path	Color Line Follower: Using color sensor and multi-case switch statements- program your robot to follow a track marked in 3 colors slow, medium, and fast http://youtu.be/3nD7PKcPpWw Blind-fold walk

	Monitoring Multiple Sensors		Multiple sensors can be monitored using a series of switches in a loop, 1 for each sensor. This is called polling. Walk the Dog	Handout: "Walk the Dog"- Use pushbuttons to guide robot

	Complex Behaviors		Create complex behaviors by stringing together individual behaviors loops conditioned by time or sensors-i.e., follow a line until an edge sensed, then back up, turn, and go down a ramp until a line crossed, then do sumo-bot, etc. Go to Line, wait for trash to be placed in receptacle, then turn around, dump it, and return for more( use 3-motor robot)	Video: Path-clearing Robot

	Robot Swarms: Self-Assembling Robots		Program robots to find a line, then follow it until they have created a fixed formation	Video: Swarmanoid

21-22				Robotic Trash Truck Arm

23-24	Mechanisms Flipper Advanced Flipper Instructions) Ramps Elevator Ball Kicker Mini-Golf Great Ball Contraption Pinball Machine rack and pinion		Introduction to basic mechanical mechanisms- lever, pulley, worm gear, crank Exercises: Label base Attach NxT to base Attach motor to base vertically Attach motor to base horizontally Build ball receiver Build flipper to detect ball, raise ball 2" onto track Build device to detect ball, sweep 90 degrees around corner Build elevator to lift ball 4" Build Tracks
				Music Player- Player Piano
	Sociable Robots Sociable Robotsp2 Robots- even non-humanoid ones- must interface well with humans. Can your robot be used by a novice user? Why is the Apple ios so successful?		Introduction to sociable robots, and exploring the Common Palette and sensors- Move, Display, Sounds, Wait fors, Loops and Switches	Day 1 Puppet Show

21	Final Projects: The Robotics Zoo The Way Home Miniature Golf Artbotics-Kinetic Art Rollerball Transportation System Robo-Sundae Maker Ball Sorter Self-Assembling System -Robot Swarms		Milestones: Proposal Form (Week 1) Journal Entry (3)( Weeks 1,2,3) Chassis (Week 2) Algorithm(Week 2) Sensors/Mechanism(Week 3) Program(Week 3) Presentation Report or Brochure	Robotic Zoo- Sample
	20	Summary of Concepts
	Ending		• Disassemble projects • Return base plates • Wipe out kits with windex • In kit: 3 motors, Nxt, 5 wires, 1 of each sensor • Sort plastics • Inspect kits • Show Video • last thoughts
	Advanced Robotics
	Introduction to Advanced Robotics		National Geographic Video- Sensor controlled car NxT Tutorials	Adv Robotics Video Solidworks-What Engineers do..... Presentation on NxT
	Challenge Area 1: Vehicles and Navigation
			Self-Park Vehicle Challenge When your Lego vehicle finds a parking space between two parked "vehicles", it must autonomously parallel-park itself into the space. You must demonstrate a working vehicle that will park itself, and hand in a fully documented program. Related: Adaptive Cruise Control Program Car to follow a line while staying a fixed distance from next car, using light sensor or distance sensor	Build a self-parking foldable vehicle (Video) How Self-parking Cars work Self-Park Vehicle Challenge-Handout

	Introduction to Data Wires and Complete Palette		Navigate the Maze using the Acceleration Sensor Use of Data Wire sound = speed Using Motor as a Rotation Sensor to Control Steering, power Use of Acceleration Sensor Navigate Maze using Acceleration sensor	Tutorial on Data Hubs
	Challenge Area 2: Embedded Robots/Instrumentation
	Introduction to variables		Ballot Box- Buid a system that will tabulate and display the votes of three different candidates- the Red Party, the Yellow Party, and the Green Party Introduction to Variables Creating a push-button counter Displaying data: Displaying text, number to text Counting stripes,etc.	Tutorial on Variables
	Alternate Project		Vending Machine: Build a System that will: count the value of "coins" deposited vend a product when sufficient money is put in, and display the change returned

	Finite State Machines		Traffic Signals Build a model of a traffic intersection, with 2 or 3 traffic signal-gates, walk/don't walk sign, audio messages for the blind Pushing a "walk" button changes the sequence. Extra Credit: Heavy Traffic changes intervals	Video: Traffic Signal

			Microwave Oven Simulation Part 1: Construct Microwave Simulator. Includes slow speed turntable, fast fan, lamp, and control buttons. Option: Door. Video Part 2: Program Using Common Palette- has one or two cook times, user instructions, tones. Part 3: Program Using Complete Palette- Use buttons to set variable time. Challenge: Count using sensor Challenge: Set Power Level with Pushbutton
	Challenge Area 3: Prosthetics
	Claws and Effectors Prosthetics-II: Videos and Activities		Robotic Arm Challenge: Build a Robotic Arm with three degrees of freedom, that can pick something up and move it to a new location. Robotic Arm Design Robot Control Direct Control Robot Learning( Record Function) Supervisory Control Servo Loops Hysteresis	Soda-Fetching Robot Arm assembly line robot welding robot DaVinci Surgical Robot "Little Dog" Alphadog PETMAN Control of Hand
	Challenge Area 4: Student Choice:
18	FINAL PROJECT Plan, design, program, and build a robot that performs a useful task that utilizes what you have learned this term. Robot should be non-trivial, and include sensors, motors, effectors, and multi-loop programming.	Milestones: Proposal Form (Week 1) Journal Entry (3)( Weeks 1,2,3) Chassis (Week 2) Algorithm(Week 2) Sensors/Mechanism(Week 3) Program(Week 3) Presentation Report or Brochure		Sketching Tutorials brochure-template brochure-sample
			Arduino Robots MIT K12 Video Tutorial: Making a Row of Blinking LEDS http://k12videos.mit.edu/content/arduino-tutorial-1 MakerShed Arduino 101: Intro to Arduino http://youtu.be/pMV2isNm8JU Adding a Button: http://youtu.be/XUuXq4J4u14 Potentiometers and Servos: http://youtu.be/FKj9jJgj8Pc Ultrasonic Sensor: http://youtu.be/E_GcoicsNJs Accelerometer Sensor: http://youtu.be/HYUYbN2gRuQ	Lady Ada Introductory Arduino Tutorials http://www.ladyada.net/learn/arduino/ Lady Ada: Using the Motor Shield Jeremy Blum Arduino Tutorials http://www.jeremyblum.com/portfolio/arduino-tutorial-series/ Class Notes from Artisan's Asylum: Class 1 Class 2 Class 3 Homebrew Sensors
			Advanced Vehicles Laurens Valk "Snatcher" bot
			Pinball Machine Build and program a Lego pinball machines	Example 1
	Finite State Machines		Finite State Machines Elevator Combination Lock Vending Machine Turnstile Advanced Traffic Signal
			Walking Robots Laurens Valk Strider bot Theo Jansen Strandbeests Walking Mechanism PETMAN by Boston Dynamics AlphaDog Cheetah NxT Zoo- Videos- http://www.vimeo.com/780064 The NxT Zoo- http://thenxtzoo.com/	Simple Walking Mechanism Crabwalker Theo Jansen Walker Simulation Strandbeests
			Robot Swarms Build robots that collaborate Application 4: Bluetooth Radio Remote Control	NOVA: Robot Swarms
			Art Bot Build a robot that creates art	Drawing Robot Gripper Portrayer Robot
			Sociable Robots Sociable Robot Challenge Sociable Robots	NOVA: Sociable Robots Tufts Hand Puppet
			NxT Musical Instruments NxT Audio Cane for the blind NxT Guitar Building Steps Results	Handout Gibson Robo-Guitar Damien Mckee on Nxt Musical Instruments Pinball Wizard
19	Term End: Take Apart
