Plan, design, program, and build a robot that performs a useful task that utilizes what you have learned this term. Robot should be non-trivial, and include sensors, motors, effectors, and multi-loop programming.

Milestones:

  • Brainstorm Ideas
  • Group Project Proposal
  • Proposal presentation
  • Mockup
  • Build Robot
  • Program
  • Debug
  • Present Robot

Challenge Handout

Proposal Form

Sample Brochure

Brochure Template


Sample Challenges:

What are the problems that need to be solved for each?

Ant colony challenge: A worker ant goes out and looks for food( red bricks). When it finds it, it can communicate to another robot ant in the colony where it is, enabling the second ant to head directly to the food.


Robotic Band- 2 or more robot musicians combine to play music. Includes bells and other percussion. Each robot should play a passage, then signal to the other robot musician to come in at the correct time. Robots may use sound generator, but must physically move as well- banging drum, strum guitar, or signal to other musician.


Robot Guitar Tuner


Stereotaxic Surgery - Build a Robot simulator for stereotaxic brain surgery- Operator enters polar coordinates( Right ascension, declination) and depth of probe, and robot moves probe to the correct position.


Laparoscopic Robot- Robot has laparoscopic pincer tools, which can be operated very precisely using wired remote controls.


Bomb Disposal Robot: Robot locates "Bomb", picks it up, and carries it to a safe container and drops it in, after which there is an explosion.


Artbot: Robot paints pre-programmed pictures on paper using colored markers


Shooter Robot: Robot fires balls at target, controlled by accelerometer sensor.

Automatic Cup Holder- Build a robot that detects cups of different sizes, grabbing each securely.


Navigation Robot 1: Robot that can find its way through a series of (unknown) doors.


Navigation Robot 2: Robot can find its way from inside Room 142 to marked location on landing outside cafeteria. May use compass sensor.

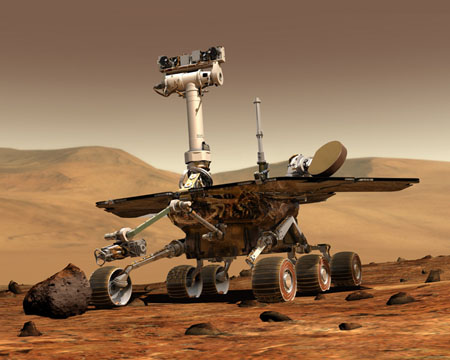

Mars Surveyor- Mars Surveyor that autonomously maps 6' x 10' area of hallway using data collection.


Pickup Line Robot: Robot that interacts with you socially, using text, smiles and frowns, speech, and handwaving.


Psychiatrist Robot - - Robot interacts via responses- NxT Robot will smile, frown( on screen), turn, and point, in addition to verbal and audio reponses.

NxT Boat- Remote Controlled Boat or submarine
