In a servo loop, the value of an output(such as a motor position) is made to track a control value.

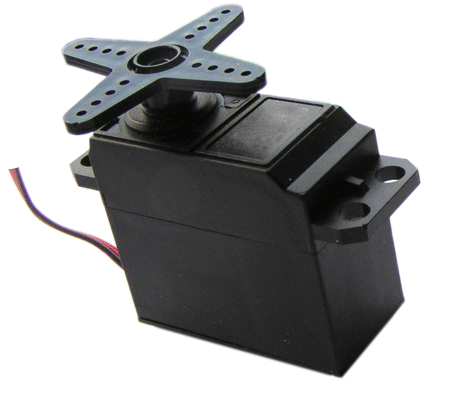

Above: Servo Motor

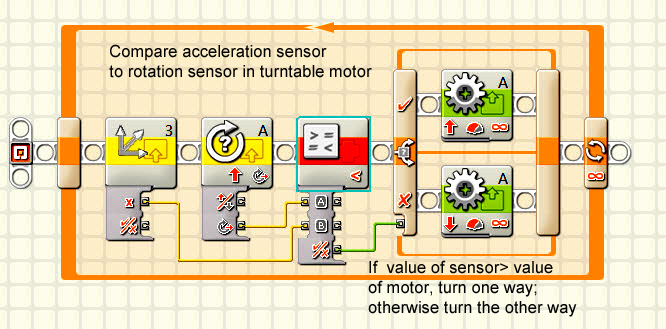

In this example, the acceleration sensor value is compared to the value of the motor position.
If it is greater, the motor turns one way; if smaller, the motor turns the other way.

But there's a problem- the responding motor tends to overshoot the control value, causing vibration...... we need to make it less sensitive...

Hysteresis
