Lesson 1


o Design Brief: Working in pairs, build the highest free-standing tower you can.
o Constraints: You are limited to 5 sheets of copier paper and 6” of scotch tape per tower
o Performance criteria: The tower must stand for at least 30 seconds.


• A: At Least 50” tall
• B: At Least 40” tall
• C: At Least 30” tall


Next Class: Re-design
Clean-up
Summarize: What did you find? Dismiss from seats.


Lesson 2

• Prep:
• Paper in packets
• Cut dowels in 2
• Scissors
• Tape- no fixed amount; squares of aluminum tape String
Assign Partners

  • Review Issues:
    • Redundancy
    • Importance of Side Support- demonstrate with pole held at bottom—acts as hinge
    • Think: How can we create side support?

Today I will show you the technology for building paper towers:

Demonstrate Rolling technique with a half-sheet
Demonstrate joining technique w/metal tape or glued paper tape
Demonstrate interfacing supports with center to make a tripod


Lesson 2 or 3:

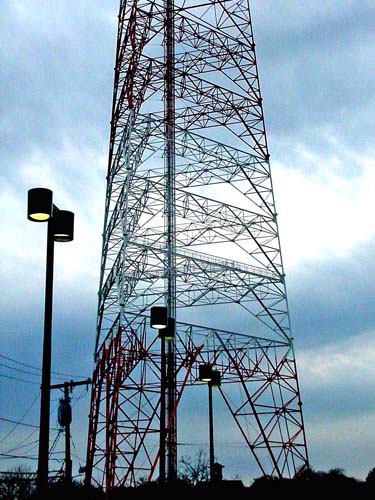

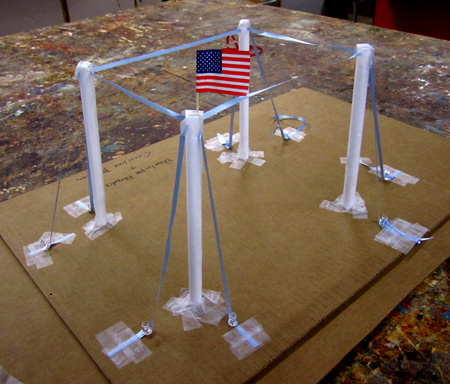

o Demonstrate guy wires with string


Alternate application: Stays on ship mast rigging.

Master and Commander-Preview- Note the forces on the mast and rigging.

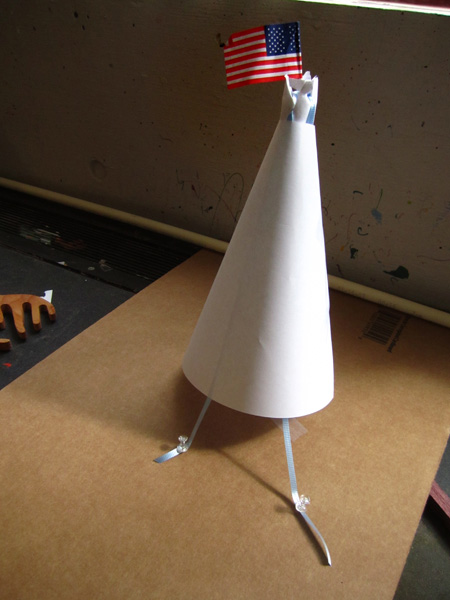

Tents: A "Complete" structure, with elements in both tension and compression

Discussion:

The importance of learning from failure- there is no "bad" building-only specific issues that need to be corrected.
The importance of good craftsmanship and care in construction


Wimpy Antenna by Doug Prime

Master and Commander-Preview


Making Paper Cables
