Grade 7 Design-Construction- Frames


Frames
Links

Course Home

Syllabus

Calendar

Class Notes

Assignments

Gallery

Frameworks/MCAS

Additional Material

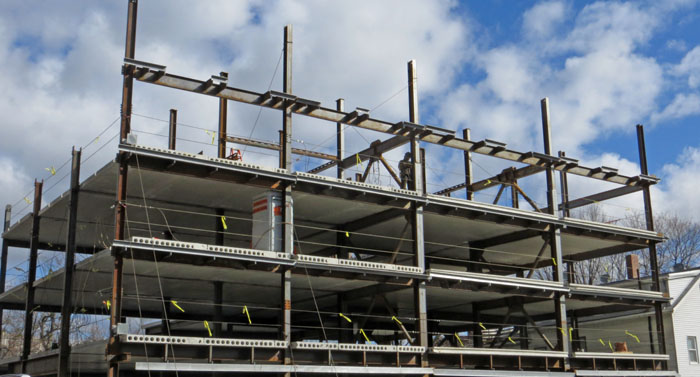

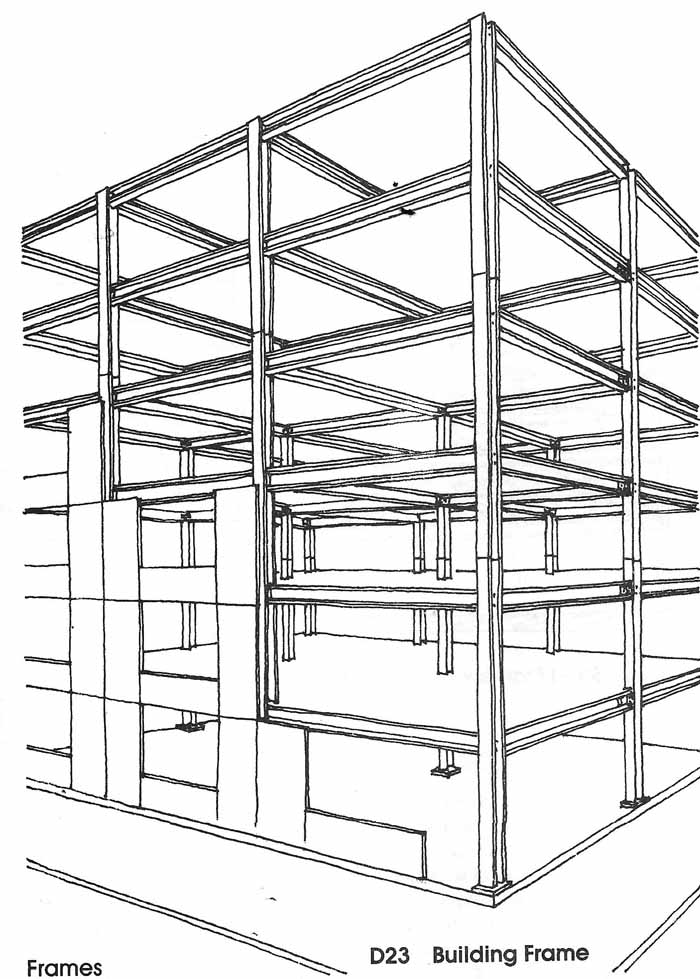

Frames are structural systems comprised of floor slabs supported by beams, beams sypported by columns, and columns supported by a foundation.

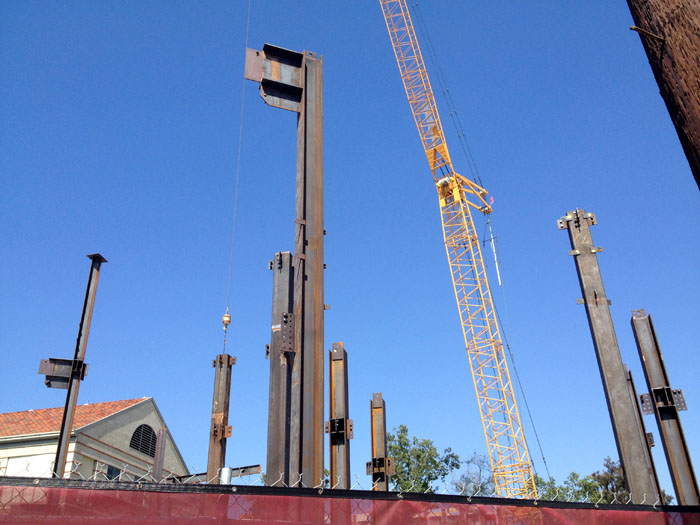

steel columns at USC

The construction of frames starts with the erection of columns




frame

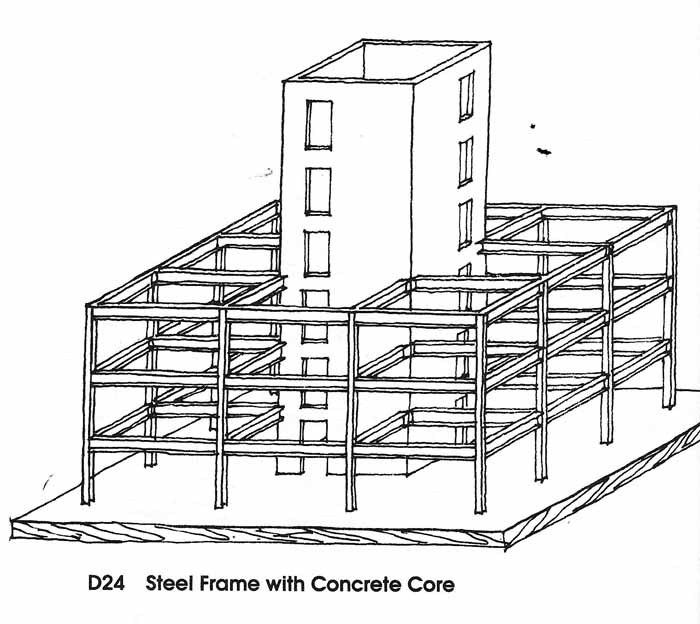

Some frames have a vertical frame supporting vertical loads and a concrete core resisting lateral forces from wind and earthquake.( Levy and Salvadori)

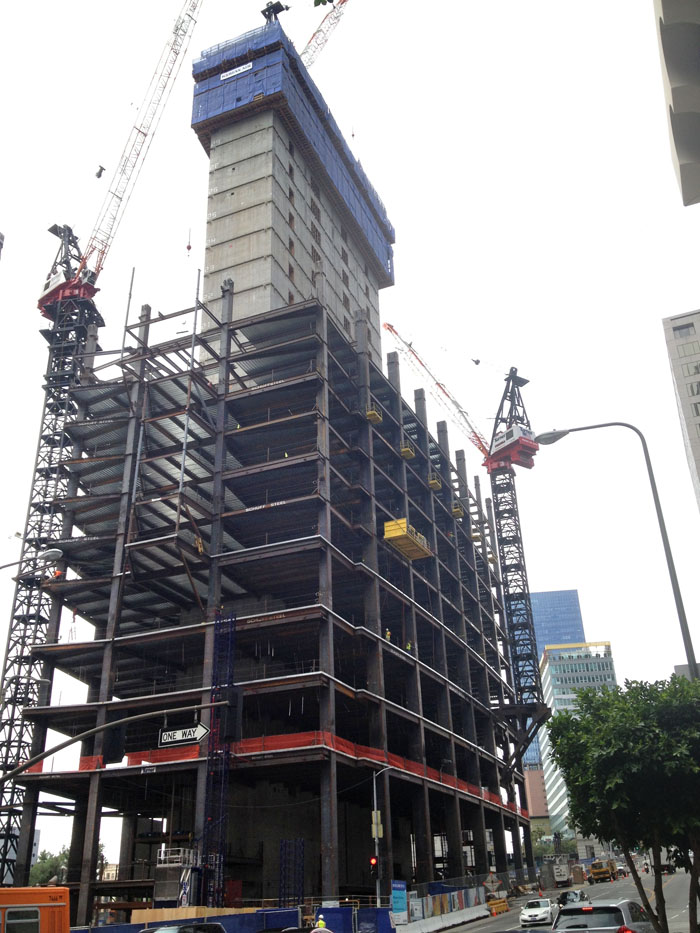

framewithconcretecore

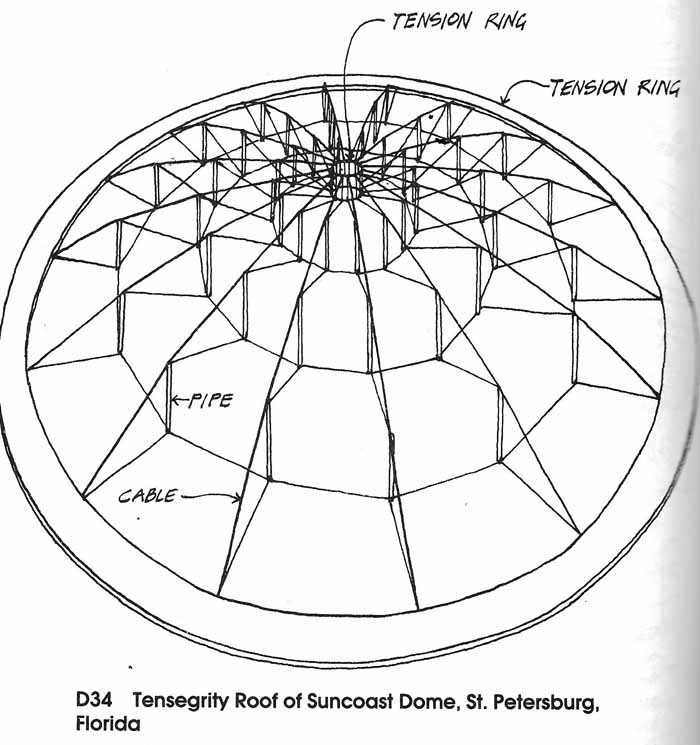

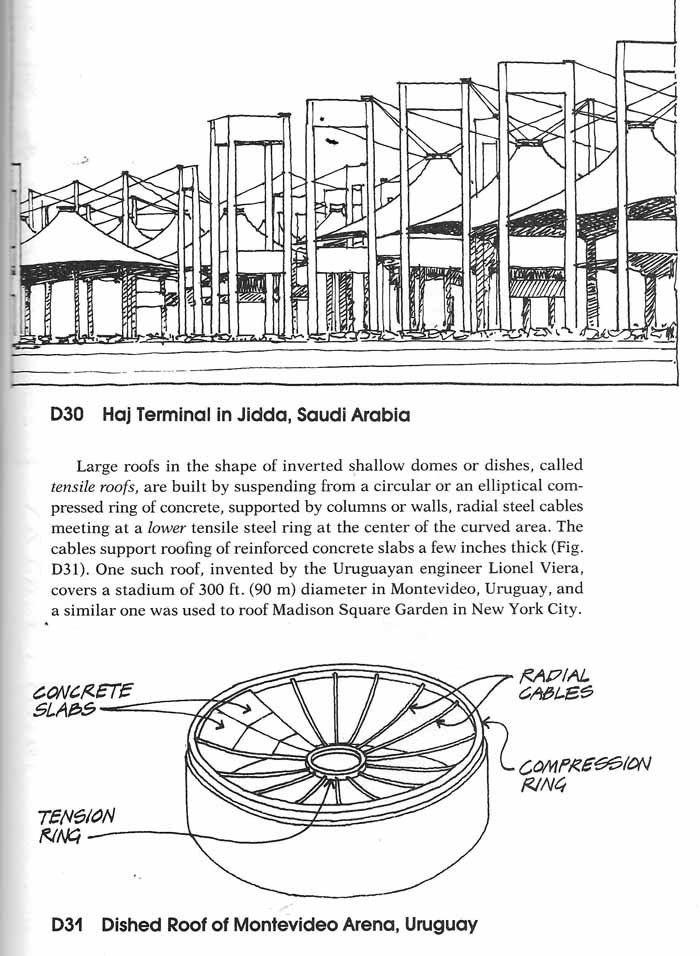

A tensegrity structures is comprised of columns providing strength in compression and cables providing strength in tension.







Frames for certain structures, such as for rockets and airplanes, must be as light as possible:

Wright Flyer

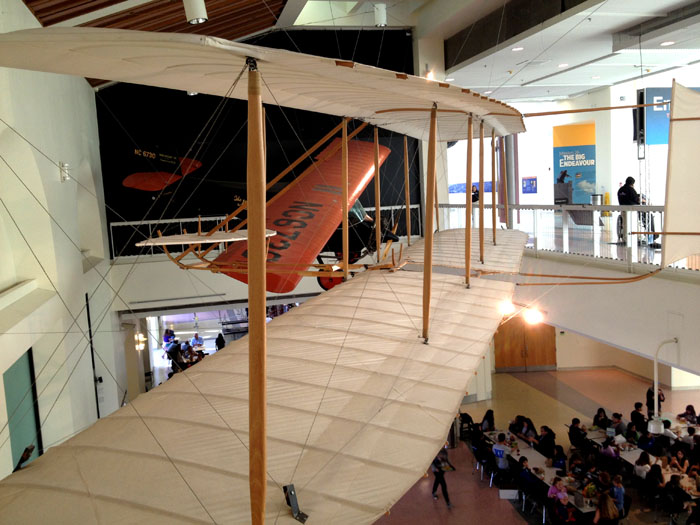

 Model of Wright Flyer














Revised March  2015 by Jonathan Dietz, dietzj@weston.org
